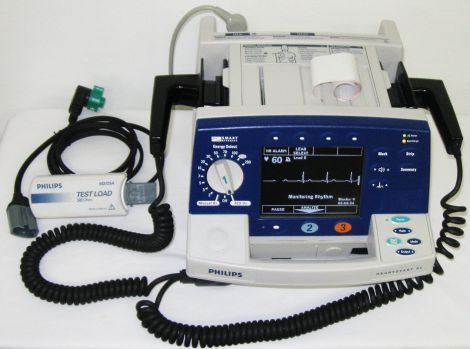

Philips: Heartstart XL BiPhasic

We are one of the prominent firms of the city involved in manufacturing, supplying and exporting technologically advanced Philips Heartstart XL BiPhasic. The Philips HeartStart XL Defibrillator/Monitor is designed to meet a wide variety of defibrillation and monitoring needs in one lightweight, easy-to-use device. At just under 14 lbs., the HeartStart XL is easily transported throughout the hospital to the site where cardiac care is needed. A combination manual device with automated external defibrillator capabilities, HeartStart XL enables the first caregiver on the scene, whether an ALS or BLS clinician, to deliver potentially lifesaving defibrillation therapy.

Features:

• SMART Biphasic waveform for defibrillation therapy
• ECG monitoring through pads and separate monitoring electrodes
• Synchronized cardioversion
• Manual and AED operation
• Built-in 50 mm strip chart printer
• Bright Liquid Crystal Display (LCD) display for viewing waveforms and messages
• Internally stored event summary which may be printed
• Voice prompts in AED mode
• Adjustable ECG size
• Adjustable volume
• Setup mode, automatic self-tests and error handling
• ntegrated AC power

Specifications:

General

• Dimensions: 19.0 cm (H) x 37.6 cm (W) x 34.6 cm (L),(7.5 in. x 14.8 in. x 13.7 in.)
• Weight: 6.0 kg (13.3 lbs.) including battery and full roll of paper

Defibrillator

• Waveform: Biphasic Truncated Exponential. Waveform parameters adjusted as a function of patient impedance
• Shock Delivery: Via multifunction defib electrode pads or paddles.
• Charge Time: Less than 3 seconds to 200 Joules with a new, fully charged M3516A SLA battery pack at 25ºC. Less than 15 seconds to 200 Joules when powered by AC with no battery installed.
• Patient Impedance Range: Minimum: 10-25 Ohm, depending upon energy level
• Patient Impedance Range: Maximum: 180 Ohm

Manual Mode

• Manual Output Energy (Delivered): 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200 Joules. Energy limited to 50 Joules for internal defibrillation
• Controls: Manual/AED On/Energy Select knob, Charge/Disarm, Shock, ECG Lead Select, SpO2 On/Off, SpO2 Alarm, HR Alarm, Sync On/Off, Pacer, Pacer Start/Stop, Pacer Rate, Pacer Current, Pacer Mode, ECG Gain, Volume, Strip, Summary Mark.
• ndicators: LCD display for ECG waveforms and text prompts, Audio alerts, QRS Beeper, Charging tones (for sync and asychronous modes), AC Power LED, Battery Charging LED, Sync LED, Pacer LED.
• Armed Indicators: Charge Done tone and available energy indicated on display
• Energy Selection: Front panel rotary knob.
• Charge Control: Front panel “2” key or buttons on paddles.
• Shock Control: Front panel “3” key or buttons on paddles.
