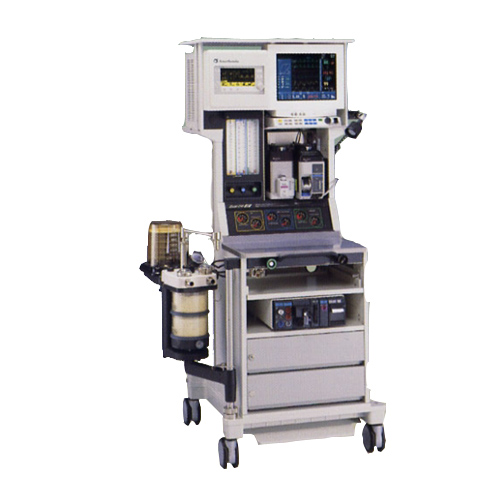

Ohmeda Anesthisia Work Station

Anesthisia work station

We are one of the prominent firms of the city involved in manufacturing, supplying and exporting technologically advanced Anesthisia work station. Which are designed to mechanically move breatheable air into and out of the lungs, to provide respiration for a patient who is physically unable to breathe or breathing insufficiently. These devices are widely used in intensive care medicine, home care, and emergency medicine and in anesthesia. This anesthesia machine is great for areas where a small footprint is necessary.

Features:
  • Accommodates 3 gases and 2 vaporizers
  • Powerful ventilation and monitoring capabilities for secondary anesthetizing locations.
  • Compact Frame; Fits Space-Constrained Areas.
  • Integrated Oxygen, Volume, Airway Pressure Monitoring.
  • Enclosed, Non-interchangeable Pneumatic Circuitry.
  • Differentiated Pipeline, Cylinder Gauges.
  • Master On / Off Switch; Activates Electronics and Pneumatics.
  • Link-25 Hypoxic Mixture Guard System.
  • Pin-Indexed, Gas-Specific Dual O2 and N2O Flowmeters.
  • Selectatec® Vaporizer Manifold for two Tech 5 Vaporizers.
  • Guarded O2 Flush Button.
  • Oxygen Power Outlet.
  • Fixed shelving with added Monitoring space.
  • Pin-Indexed, Gas-Specific Dual O2 and N2O Flowmeters.
  • Two-drawer Storage Cabinet.
  • Single-action Brake / Footrest.
  • Full-height Dovetail Accessory Mounting System.
  • Large, Easy-running Casters.
Specifications:
  • Weight: 300 lb. (136 Kg)
  • Height: 66 in. (168 cm)
  • Width: 22 in. (55.87 cm)
  • Middle Shelf(Max ) Load: 24 lb. (11 kg)
  • Middle Shelf Size: 18.6 x 12.5 in (47.2 x 31.7 cm)
  • Middle Shelf Usable height: 6 in (15.2 cm)
  • Top Shelf(Max)load: 48 lb. (22 kg)
  • Top Shelf Size: 23.5 x 14.2 in (59.6 x 36 cm)
  • Drawer Cabinet: Contains two 10.5 in x 15 in x 4 in drawers
  • Absorber Arm Length: 14 in (35.5 cm)
  • Vertical Adjustment from Floor: 10 in to 26 in (25.4 cm to 66 cm)
  • Horizontal Adjustment: 6.5 in min; 11 in max (16.5 cm min; 27.9 cm max)
  • Casters: Diameter 5 in (12.7 cm)
  • Brakes: Brake bar lock on front casters; operated by footbar.
