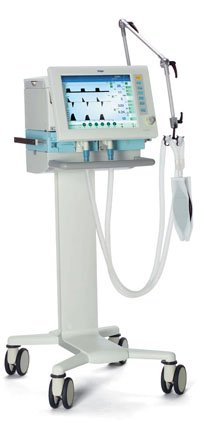

Evita XL Ventilator

We are a noted firm involved in supplying, distributing and exporting Evita XL Ventilator. The Dräger Evita XL delivers a comprehensive array of both controlled and assisted ventilation modes. It combines a broad range of performance capabilities with many advanced application functionalities, providing outstanding ventilation therapy and easy-to-use operation encompassing the entire scope of the ventilation process. The Evita® XL helps caregivers find optimal ventilation settings, supports the weaning process, and improves caregiver workflow. Refurbished Drager Evita Xl Medical Ventilator Move to the next level of excellence in invasive and non-invasive ventilation for adults, children and neonates with an advanced, multifunctional ventilator that will help you meet the challenges of modern respiratory care.combines a broad range of performance capabilities with many advanced features

Technical Specifications

Ventilation settings:

Ventilation mode:

• IPPV, IPPVAssist (CMV, CMVAssist)
• SIMV, SIMVASB (SIMV, SIMV/Psupp)
• MMV, MMVASB (MMV, MMV/Psupp)
• BIPAP1), BIPAP1)ASB, BIPAP1)Assist (PCV+, PCV+/Psupp, PCV+Assist)
• APRV
• CPAP, CPAPASB (CPAP, CPAP/Psupp)
• ILV
• PPS (optional)

Enhancements:

• AutoFlowTM – Automatic adaptation of inspiratory flow in volume controlled modes
• ATCTM – Automatic Tube Compensation (optional)
• NIV – Mask Ventilation (optional)

• Ventilation frequency (f): 0 to 100 /min, 0 to 150 /min (Neonatal)
• Inspiration time (Tinsp: 0.1 to 10 s
• Tidal volume (VT) (BTPS): 0.1 to 2.0 L (Adult), 0.02 to 0.3 L (Pediatric), 0.003 to 0.1 L (Neonatal)
• Inspiratory flow: 6 to 120 L/min (Adult), 6 to 30 L/min (Pediatric and Neonatal)
• Inspiratory pressure: 0 to 80 mbar (cmH2O)
• PEEP / intermittent PEEP: 0 to 35 mbar (cmH2O)
• Pressureassist (PASB) (Psupp): 0 to 80 mbar (cmH2O)
• Rise time for inspiratory pressure: 0 to 2 s
• O2 concentration: 21 to 100 Vol.%
• Trigger sensitivity: 0.3 to 15 L/min

Measured values displayed:

• Airway pressure: Peak pressure, plateau pressure, mean pressure, PEEP, min. pressure (0 to 99 mbar/cmH2O)
• Minute volume (MV), (BTPS): MV, MVspont, MVleak (0 to 99 L/min)
• Tidal volume (VT), (BTPS): Inspired VT, expired VT, VTPS (0 to 3999 mL)
• Breathing frequency (f): ftotal, fspon, fmand. (0 to150/bpm)
• O2 concentration (FiO2): Inspired O2 concentration (15 to 100 Vol.%)
• Breathing gas temperature: 18° to 51°C
• Waveforms: Airway pressure-time, flow-time, volume-time
• Trends (8 anyone configurable): FiO2, MV, VT, f, PEEPi, R, C, etCO2
• Capnography (etCO2) (optional): 0 to 100 mmHg
• CO2 production (VCO2): 0 to 999 mL/min, STPD*
• Serial dead space Vds: 0 to 999 mL, BTPS*
• Dead space ventilation (Vds/VT): 0 to 99 %
• O2 saturation: SpO2, pulse

Alarms / Monitoring:

• Airway pressure: High / Low
• Expired minute volume: High / Low
• Tidal volume: High
• Apnea alarm time: 5 to 60 s
• Spontaneous breath frequency: High
• Inspired O2 concentration: High / Low
• Breathing gas temperature: High
• SpO2 pulse (optional): High / Low
• etCO2 (optional): High / Low

Performance data:

• Max. flow for pressure support and spontaneous breathing: 180 L/min (adult), 60 L/min (pediatric)
• Valve response time: T0...90 ≤ 5 ms
• Control principle: Time cycled, volume constant, pressure-controlled
• Safety relief valve: 100 mbar (cmH2O)
